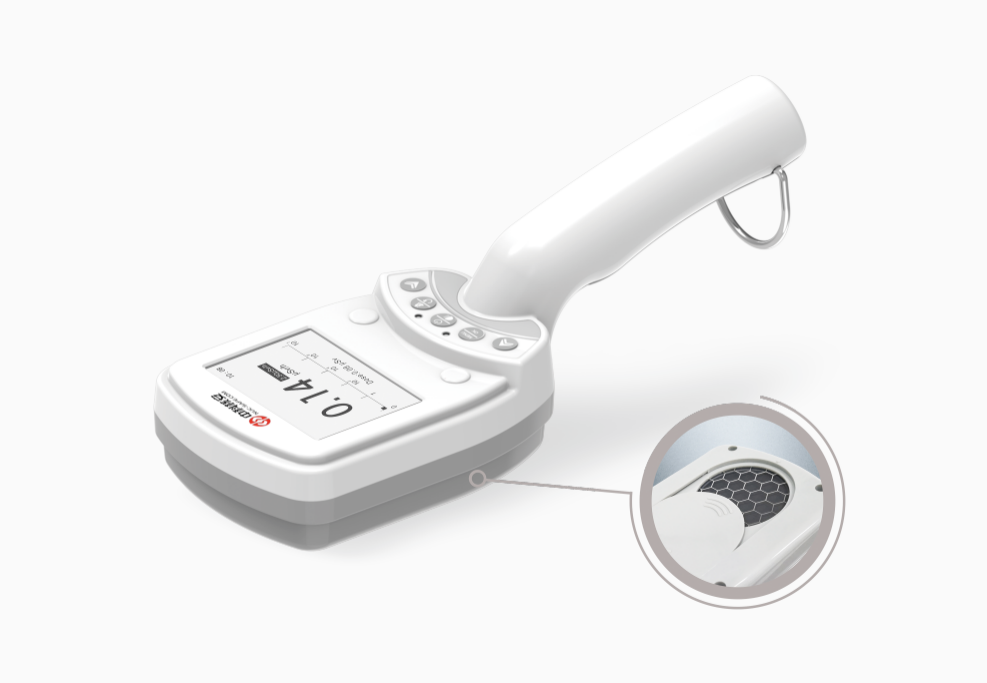

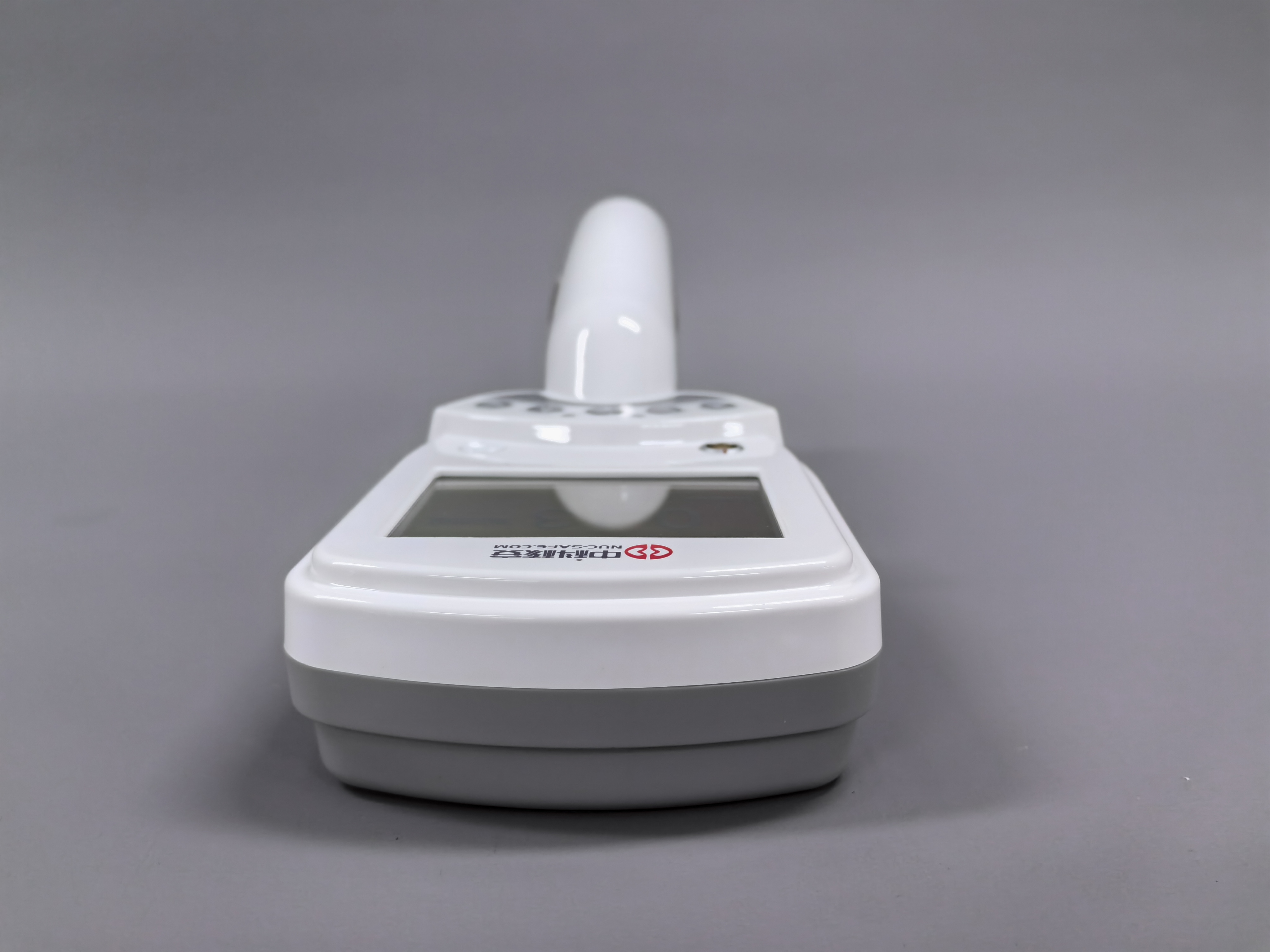

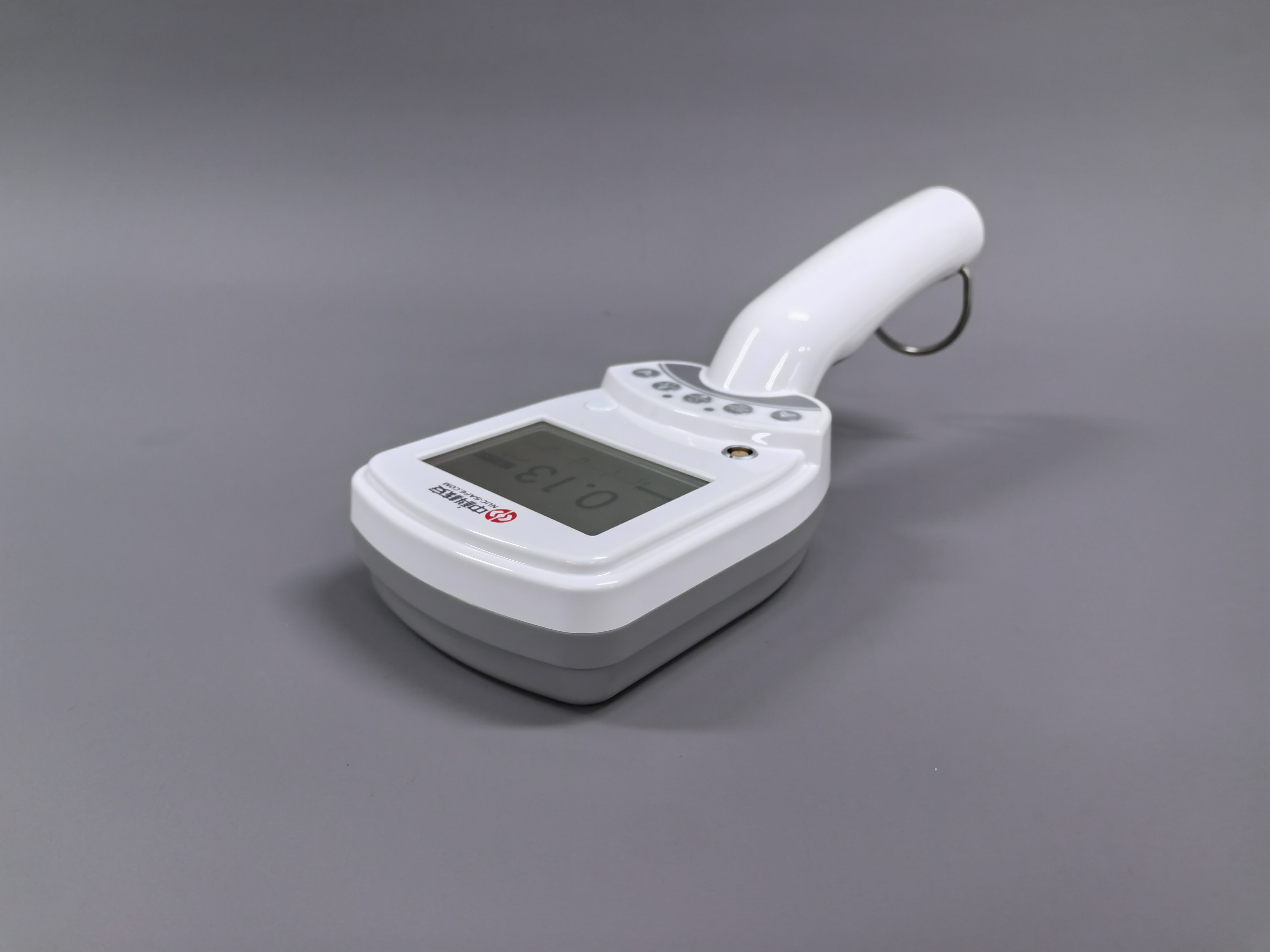

Inspector Survey Meter

Multifunctional surface contamination measuring instrument, which can measure α, β, rate level.
Add to inquiry
ꁆ ꁇ

Product Overview

Multifunctional surface contamination measuring instrument, which can measure α, β, rate level.



Features

  • Personnel, articles, tables and other α, β surface pollution detection;
  • Monitoring of X and γ in radioactive workplaces;
  • Fast response algorithm, measurement when the prompt sound, that is, the measurement is ringing;
  • Over the threshold sound, light, vibration alarm mode, the alarm threshold value can be set continuously;
  • Automatic sense backlight, can automatically sense according to the intensity of the environment and adjust the backlight;
  • Automatic data reporting, measurement data support reporting to the supervision platform, to facilitate information statistics and analysis management (matching).



Technical Specifications

Product Model

HA3100AB-15

Detectors Types

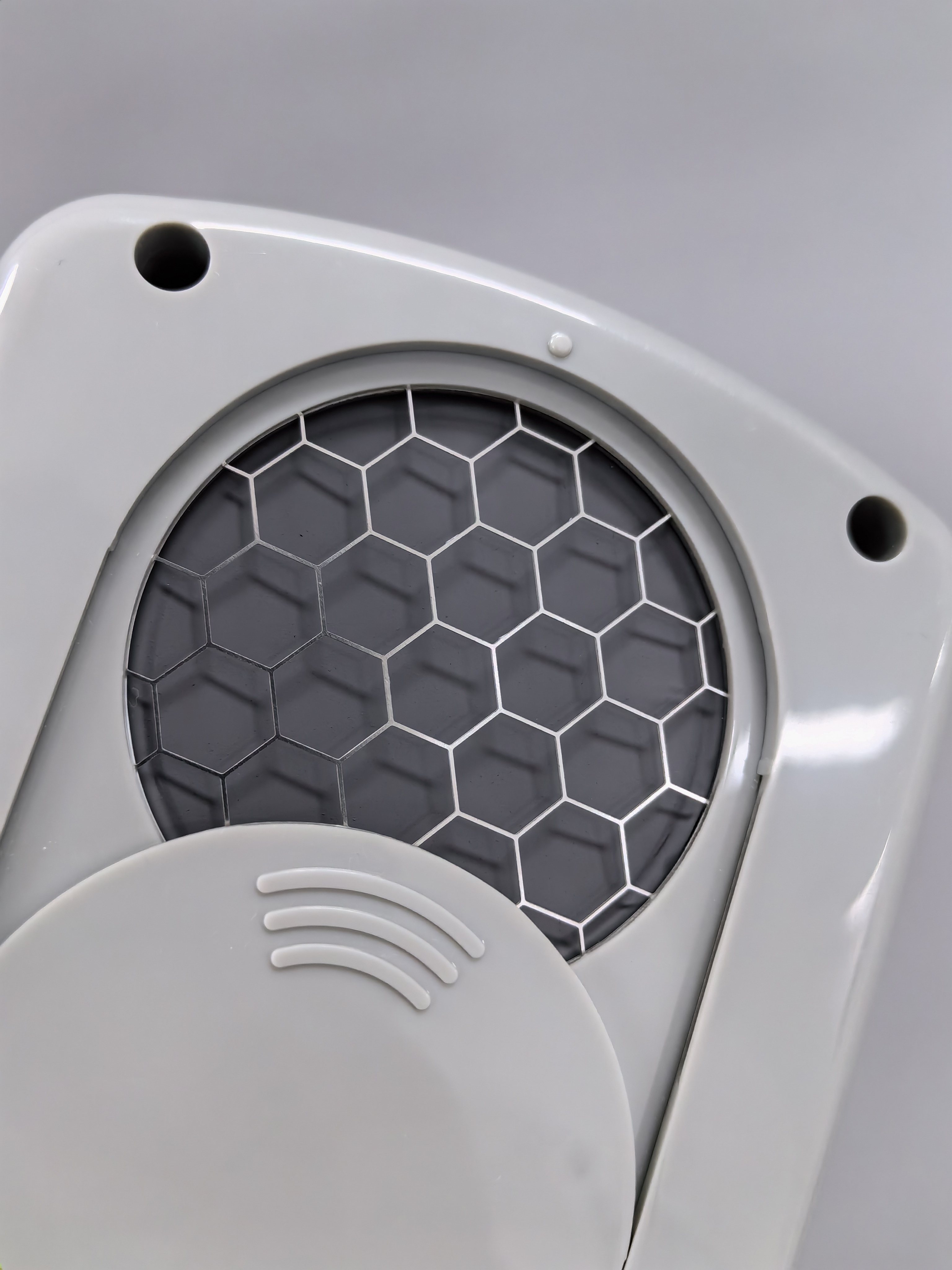

End window G-M tube

Window effective diameter

≥45mm

Measuring Range

0.01μSv/h~5mSv/h

Energy Range

α:≥2MeV;β:≥100keV;X、γ:20keV~3MeV

Sensitivity

5.8cps/μSv/h(@662keV,137Cs)

Measurement Unit

cps、Sv/h、Bq/cm²
