Product Overview

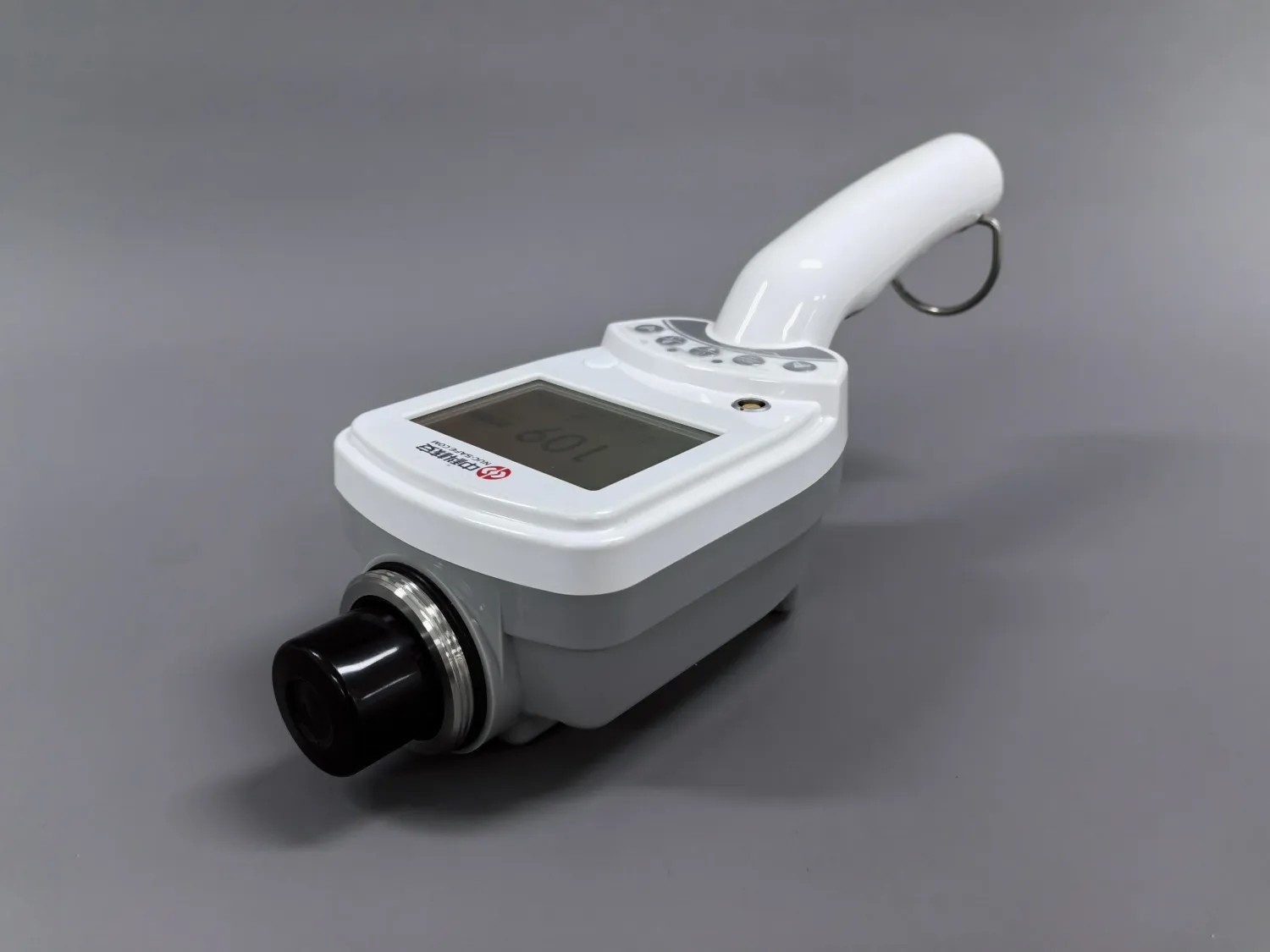

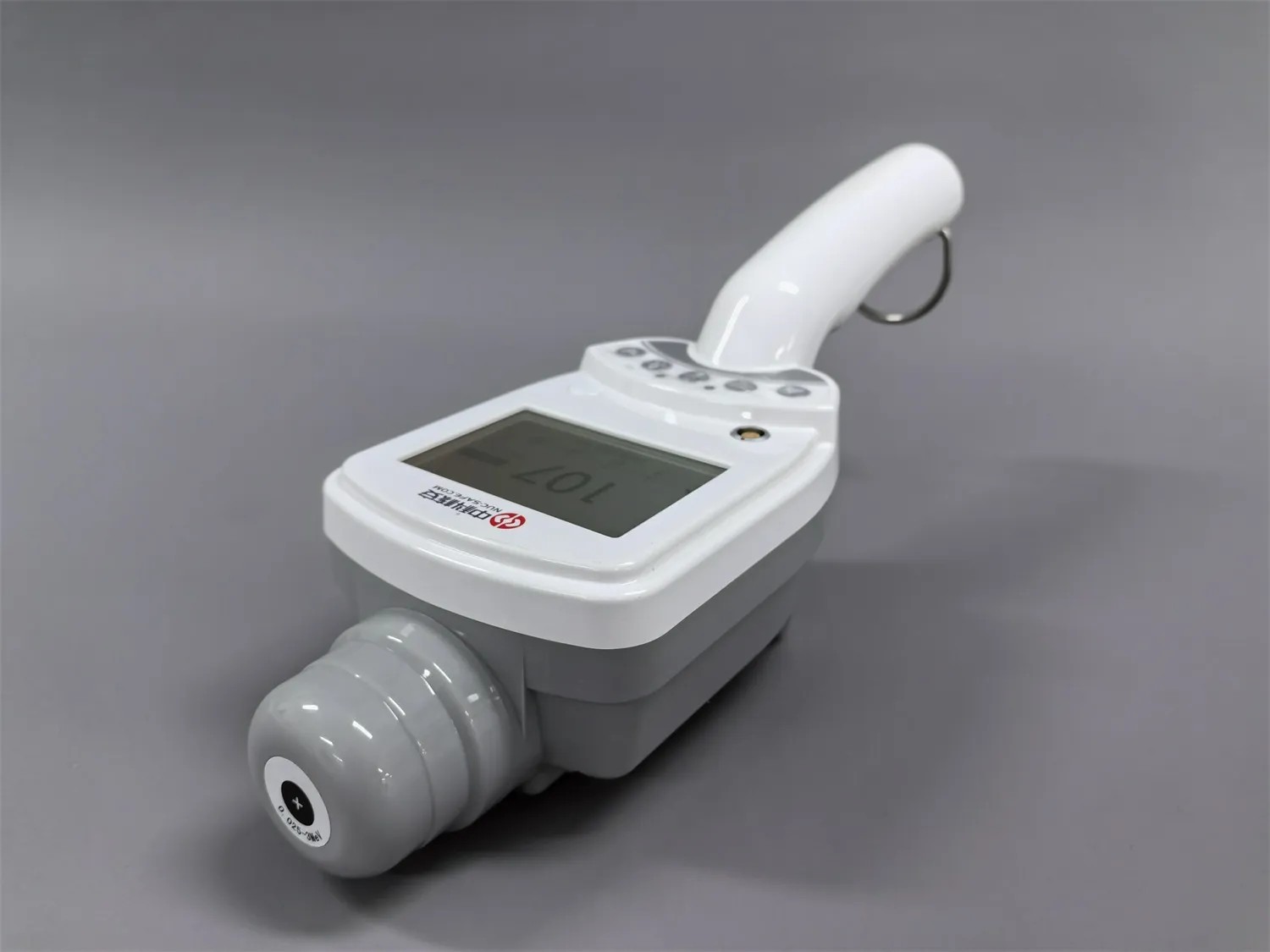

HA3100G-XX X, γ dose rate meter (low energy, pulsed) is a professional low energy X, γ dose rate meter, used to measure and evaluate the X-ray and environmental dose equivalent rate of medical protection. It can measure continuous, short-time and pulsed radiation levels, and can also measure low energy rays with energy as low as 15keV. It is widely used in nuclear medicine and health physics fields to measure the radiation level around X-ray diagnosis and treatment equipment.

Features

① Low-energy response: can detect X-rays and gamma rays as low as 15keV;

② Applicable to various radiations: pulse radiation, continuous or short-term X-rays and gamma radiation;

③ High-sensitivity measurement: combined with the fast-response FRC algorithm, it is more sensitive to short-term pulse radiation and responds immediately after measurement;

④ Dynamic measurement prompt: the frequency of the measurement prompt audio changes in real time according to the intensity of the ambient radiation, which is easy to judge;

⑤ Automatic sensing backlight: the brightness of the display screen can be adjusted manually, and the backlight can be automatically sensed according to the ambient light;

⑥ One-click record generation: when performing patrol tasks, data can be saved with one click, which is convenient for on-site patrol records and tracing;

⑦ Multiple alarm modes: It has multiple alarm modes such as over-threshold sound, light, and vibration, which can ensure the safety of personnel in multiple ways;

⑧ Radiation data networking: patrol data can be wirelessly reported to the supervision platform to facilitate information statistics and analysis management (optional).

Technical Parameters
